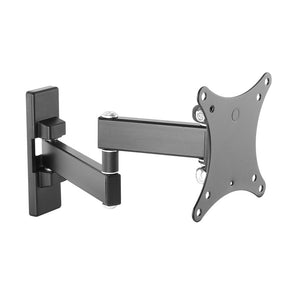

13"-27" LED LCD TV Wall Mount w/11.1" Arm 44~282mm Full Motion

Features:

The KLA26-112 full-motion mount lets you enjoy a great picture no matter where you watch. It accommodates most 13"-27" flat panel TVs up to 15kg/33lbs. Tilt, swivel, extend and level your TV without the need for tools. Its post-installation leveling adjustment ensures the TV is perfectly positioned on the wall.

TV Mount for 13~27" w/ 11.1" Arm 44~282mm Full Motion, 100x100 VESA , KLA26-112 Application

* Material: Steel, Plastic
* Color: Fine Texture Black
* Surface Finish: Powder Coating
* Metal Sheet Thickness: VESA Panel THK: 0.079" (2mm) cold-rolled sheet & Wall Plate THK: 0.098" (2.5mm) pickling sheet"
* Compatible Screen Size *: 13"~27"
* Dimensions: 11.1"x5.4"x4.6" (282x136x117mm)
* Max VESA: 100x100mm
* Weight Capacity: 33Lbs (15kg)
* Profile: 1.7~11.1" (44~282mm)
* Tilt Range: -10°~3°
* Swivel Range: -90°~+90°
* Installation: Solid Wall, Single Stud
* Panel Type: Detachable Panel
* Wall Plate Type: Fixed Wall Plate
* Cable Management: No
* Anti-Theft: No
* Strength Tested: 2 Times Approved

* Note: Supported screen size is provided as a reference only. Please check the bracket dimensions above and make sure the overall bracket size does not exceed your TV.
