125 Fiber Optic Patch Cable

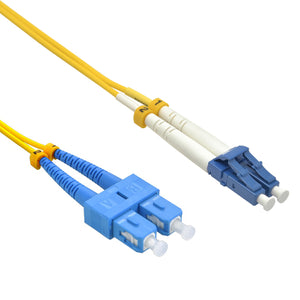

Name: LC/UPC-SC/UPC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable
Brand: EAGLEG.COM
SKU: 102796
Price: 5.29 USD
Availability: InStock

California Prop 65

PVC-Coated Products or PVC-Coated Wires and Cables

Warning: Warning: This product can expose you to chemicals (including but not limited to Styrene, BPA, DIISONONYL PHTHALATE, DINP, etc), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information about California Proposition 65, visit California's Government information page at www.P65Warnings.ca.gov

LC/UPC-SC/UPC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable.

With LC to SC connectors, this fiber patch cable is ready for deployment in any singlemode 9/125 network. Singlemode 9/125...

$5.29

Availability: 2000 In Stock

Code: 102796

Unit Weight: 0.06 lb

Description
Reviews (0)

LC/UPC-SC/UPC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable.

With LC to SC connectors, this fiber patch cable is ready for deployment in any singlemode 9/125 network. Singlemode 9/125 are best used for long cable runs. This singlemode, duplex fiber cable is comprised of corning optical fiber with ceramic connectors. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection.

* Used to connect patch panels and/or network devices that utilize LC to SC style connectors and require 9/125 Single mode cabling
* Flexible boots are able to be bent and set in different orientations to accommodate tight spaces.
* A/B Markers easily identify the TX and RX connector on each end of the assembly
* Connectors utilize a UPC polish

Connector Type: LC-SC Duplex Singlemode
Polishing: UPC
Return Loss: ≥ 55dB
Insertion Loss: ≤ 0.30dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Body Type: Duplex
Nominal Diameter Core: 9/125 µm
Operation Temperature Range: -20°C +70°C
Jacket Material: OFNR
Jacket Diameter: 2.0mm
