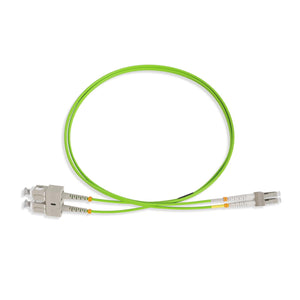

OM5 LCU-SCU 50/125 LSZH/OFNR Duplex Multimode Fiber Optic Patch Cable Green.

With the development of multimedia, there is requirement for more and more broad bandwidth for audio and video applications. This OM5 fiber optic patch cables feature an extremely high bandwidth 4700MHz*km, more than any other mode which support 10GB to 550 meters and 100GB to 125 meters. OM5 Fiber Optic Cables are suitable for high-throughput applications, such as LAN's, SAN's, and data centers. These cables are fully (backwards) compatible with 50/125 equipment as well as with 10 gigabit Ethernet applications. These connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection.

* Our high-quality OM5 multi-mode fiber cable with LC/SC connectors is perfect for high-throughput applications.
* Corning® ClearCurve® OM5, ColorPro™ Tech, 50μm core and 125μm cladding.
* Ensured via minEMB, in compliance with the TIA/EIA 455-220A and IEC 60793-1-49 standards specifically for laser-based high-performance systems.
* OM5 fiber optic cable backward compatible with OM4 and OM3.
* With an Effective Modal Bandwidth (EMB) of 4700 MHz.km at 850nm, 2470 MHz.km at 953nm.
* Support OFL Modal with the bandwidth of 3500 MHz.km at 850nm, 1850 MHz.km at 953nm, 500MHz.km at 1300nm.
* Support 10G up to 550 meters, 40G/100G up to 150 meters.
* Support Short-Wavelength Division Multiplexing (SWDM) and Wideband Multimode Fiber (WBMMF), enabling longer transmission distance and 200G/400G use.
* 40G/100G transmission distance at 450 meters under SWDM.
* LSZH/OFNR (riser) dual-rated fiber cable is ideal for use in upright shafts that run between floors in the building.

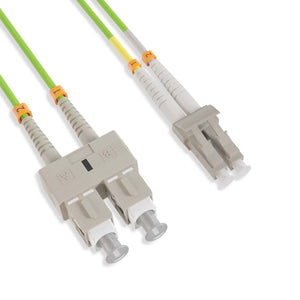

* The LC-SC connector is perfect for high-density network applications.
* Use with LED and VCSEL laser light sources.
* Backward compatible with LED-based 50/125 multimode fiber applications.
* Quality check report included in each cable package.
* UL listed E510298

Fiber Connector: LC to SC
Fiber Mode: OM5, Multimode, 50 / 125 μm
Fiber Count: 2 Strands
Polish Type: UPC to UPC
Wavelength: 850nm&1300nm
Insertion Loss: ≤ 0.3 dB
Return Loss: ≥ 35 dB
Jacket OD: 2.0 mm
Jacket Material: LSZH/OFNR (Riser)
Jacket Color: Green
