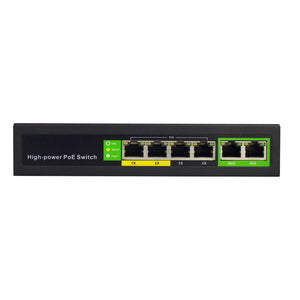

4 x 10/100M PoE Port + 2 x 10/100M Uplink Port, 65W Unmanaged PoE Switch

The PoE switch support IEEE802.3af/at POE standard, using advanced sens ing algorithm, only for the terminal device which support the IEEE802.3af/at power over Ethernet standard, do not need to worry about damage to private standard PoE or non- PoE devices. Automatic recognition of PoE demand, speed, duplex and using the Auto Uplink cable, simple and convenient to use, no need to configure, plug and play.

The PoE switch designed for commercial network, for example, some need to simplify the wireless access point (AP) and network camera installation based on IP. These away from the power socket device usually hung on the wall or the ceiling height. PoE eliminates the equipment specially connected with the power socket. The connection from the AC power supply equipment more flexible, simplified wiring, flexible and extensible, get rid of affection by power line layout constraints in family and office network.

Design of high performance to price ratio, compact, flexible, EC series is the ideal chioce of small business network to economical use of PoE deployment of wireless access point (AP) and IP camera.

Features:

* The Max distance of power supply is 250 meters.
* 6 10/100M adaptive RJ45 port, 4 port with PoE function.
* Each port supports auto MDI/MDIX and auto negotiation.
* Store and forwarding, support port isolation.
* Support two lightning of uplink port.
* Support IEEE 802.3x Full-Duplex and Backpressure Half-Duplex.
* Support IEEE802.3af/at standards, can provide 15.4W/30W per port.
* Automatic detection and recognition PD device which in accordan ce with IEEE 802.3af/at and power supply for the device.
* Intelligent power management, if the electrical equipment pow er exceeds the normal power output, the system will cut off power supply of the port, after 1-2 minutes, it will reexamination and power supply.
* Low power consumption, no fan design, natural heat
