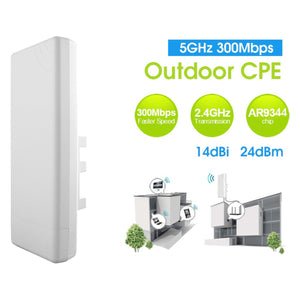

EP-CPE2617 is a high power outdoor use CPE. Its rain-proof, snow-proof and thunder-proof design ensure it can use outdoor in extreme weather. 300mbps 5g high power outdoor router has Multi-Function, such as router, signal repeater and access point. It can transmit up to 3km outdoor that makes it’s perfect for network coverage for community, building and village.

Features

Frequency: 4.9-6.1GHz
Speed: 300Mbps Power: 27dBm
Chipset: Atheros AR9344 + SiGe5012L
Weight: 0.7KG Antenna: 14dBi Directional Antenna
Support Clients: 35 Devices

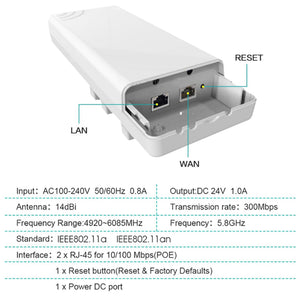

Specifications

Chipset Atheros: AR9344 600MHz
DRAM: DDR 64MByte
FLASH: 8MByte
Power Booster Chipset: SiGe5004L
Ports: 10/100Mbps LAN*2
Data Speed: 11a：54M，48M，36M，24M，18M，12M，9M，6Mbps, HT20：7.2M，14.4M，21.7M，28.9M，43.3M，57.8M，65M，72.2M，14.4M，28.9M，43.3M，57.8M，86.7M，115.6M，130M，144.4Mbps, HT40：15M，30M，45M，60M，90M，120M，135M，150M，30M，60M，90M，120M，180M，240M，270M，300Mbps
Transmit Mode: DSSS
Modulation Mode: OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Standard: IEEE802.11n,IEEE802.11g,IEEE802.11b,IEEE802.3u,IEEE802.3af
Support: CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5
Frequency: 4920～6085MHz
Power: ≤5W
Power Adapter: POE 24V 1A
RF Power: @25℃±2dB: 802.11a; 6-24Mbps; 27±2dBm; 36-48Mbps; 26±2dBm; 54Mbps; 25±2dBm
802.11n-->HT20-->MCS 0-3-->27±2dBm
MCS 4-->26±2dBm
MCS 5-->25.5±2dBm
MCS 6-->25±2dBm
MCS 7-->24.5±2dBm
HT40-->MCS 0-3-->26±2dBm
MCS 4-->25.5±2dBm
MCS 5-->25±2dBm
MCS 6-->24.5±2dBm
MCS 7-->24±2dBm
Sensitivity: IEEE 802.11a; 6Mbps≦-89dBm; 54Mbps≦-73dBm
802.11n
HT20-->MCS 0≦-86dBm；
MCS 7≦-68dBm HT40-->MCS 0≦-83dBm；MCS 7≦-65dBm
Antenna
Frequency: 4900～6100MHz
Polarization: Horizontal/ vertical
Gain: 14DBi
Management-->WEP Management-->Support
SNMP MIB-->Support
Telnet-->Support
Serial-->Support
Security-->MAC Address
Control-->Support
Encryption: WEP Encryption 64/128bits, WPA, WPA2, 802.1x
Environment Working Temperature: -30～65℃
Storage Temperature: -50～80℃
Humidity (Non Condensing): ≤95%（Non Condensing）
